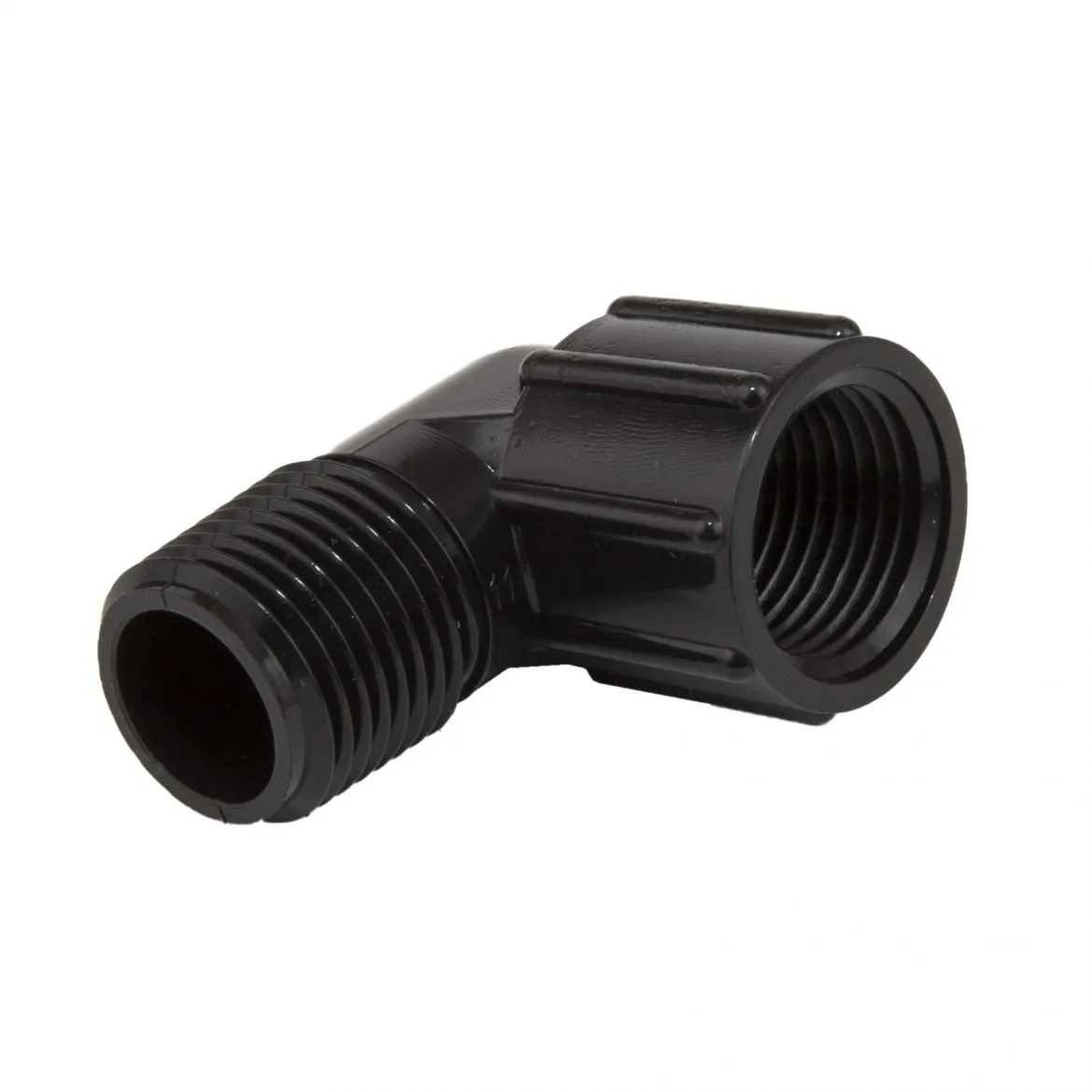

90° Elbows are designed to change the direction of a piping system by 90 degrees while ensuring smooth and efficient fluid flow. Their curved construction provides a reliable connection between pipes and helps maintain proper flow direction with reduced turbulence and pressure loss. They are widely used in oil & gas, petrochemical, chemical processing, power generation, water treatment, and general industrial piping applications.
| DN | NPS | J | d1 | Wall Thickness | Center to Bottom of Socket | 90° Elbow Cmin | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3000 LB | 6000 LB | 9000 LB | 3000 LB | 6000 LB | 9000 LB | 3000 LB | 6000 LB | 9000 LB | ||||
| 6 | 1/8 | 10 | 10.7 | 3.2 | 3.5 | - | 11 | 11 | - | 8 | 8 | - |
| 8 | 1/4 | 10 | 14.1 | 3.3 | 4 | - | 11 | 15 | - | 8 | 8 | - |
| 10 | 3/8 | 10 | 17.5 | 3.5 | 4.4 | - | 13 | 15 | - | 8 | 12 | - |
| 15 | 1/2 | 10 | 21.8 | 4.1 | 5.2 | 8.2 | 16 | 19 | 25 | 11 | 13 | 16 |
| 20 | 3/4 | 13 | 27.4 | 4.3 | 6.1 | 8.6 | 19 | 22 | 28 | 13 | 14 | 18 |
| 25 | 1 | 13 | 34.2 | 5 | 7 | 10 | 22 | 27 | 32 | 14 | 18 | 22 |
| 32 | 1.1/4 | 13 | 42.9 | 5.3 | 7 | 10.6 | 27 | 32 | 35 | 18 | 21 | 22 |
| 40 | 1.1/2 | 13 | 48.3 | 5.6 | 7.8 | 11.2 | 32 | 38 | 38 | 21 | 25 | 25 |
| 50 | 2 | 13 | 61.1 | 6.1 | 9.5 | 12.2 | 38 | 41 | 41 | 25 | 29 | 29 |
| 65 | 2.1/2 | 16 | 76.9 (73.8) | 7.7 | 12.5 | - | 41 | 57 | - | 29 | 32 | - |
| 80 | 3 | 16 | 89.8 | 8.3 | 13.8 | - | 57 | 64 | - | 32 | 35 | - |
| 100 | 4 | 19 | 115.5 | 9.4 | - | - | 66 | - | - | 42 | - | - |
