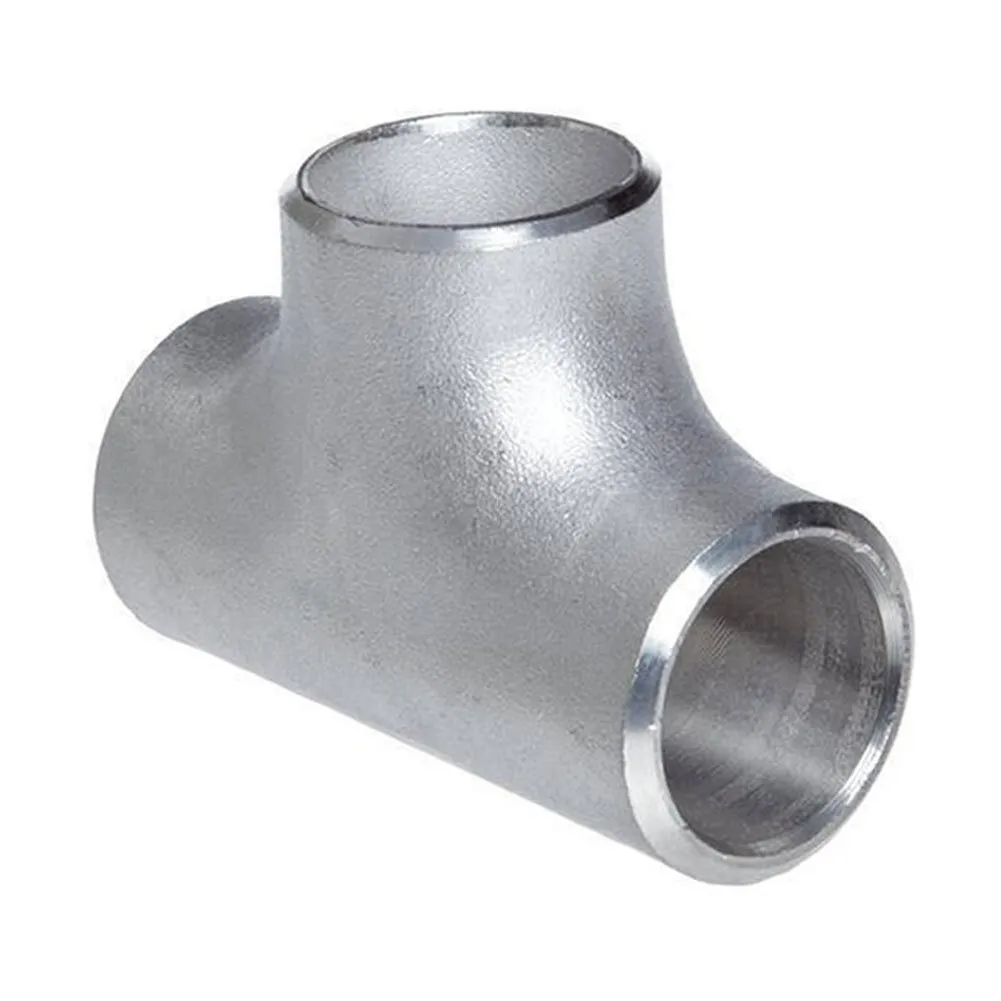

Equal Tees are pipe fittings designed to create a branch connection while maintaining the same pipe diameter across all three openings. Their symmetrical design allows efficient distribution or joining of fluid flow within a piping system and provides a strong, reliable connection. They are widely used in oil & gas, petrochemical, chemical processing, power generation, water treatment, and general industrial piping applications.
| Specifications: | ASME B16.9 Equal Tee Fitting |
|---|---|
| ASME B16.9 Tee Size: |
Seamless Butt Weld Fittings: 1/2" - 10" Welded Butt Weld Fittings: 1/2" - 48" |
| ASME B16.9 Equal Tee Dimensions: | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Tee Dimensions ASME B16.9 Thickness: | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Unequal Tee Types: | Seamless / ERW / Welded / Fabricated Pipe Fittings |
| Equal Tee And Reducing Tee Type: | DN15-DN1200 |
| Connection For Equal And Unequal Tee: | Welding |
| Bending Radius: | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom Pipe Fittings |
| Equal Tee ASME B16.9 Size Range: | ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) |
| Barred Equal Tee Fittings: |
Angle: 22.5 deg, 30 deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D,
7D-40D. Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75, DIN2605, JISB2311, JISB2312, JISB2313, BS, GB, ISO |
| Manufacturing Process for BW Equal Tee: | Push, Press, Forge, Cast, etc. |
| Cast Iron Equal Tee Test Certificates: |
EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc. |
| Origin & Mills for Carbon Steel Equal Tee: | Japanese, Indian, USA, Korean, European, Ukraine, Russian |
| Key Markets and Industries for Copper Equal Tee: |
Bitumen upgraders. Heavy oil refineries. Nuclear power (mostly seamless). Petrochemicals and acids. |
| Equal Flow Tee Application: |
Fittings To Connect Pipe & Tubes in Petroleum, Power, Chemical, Construction, Gas,
Metallurgy, Shipbuilding etc. ASME B16.9 Schedule 10 Equal Tee are an economical alternative for lower-pressure applications. ANSI B16.9 Schedule 40 Equal Tee have a thicker wall for higher-pressure applications. |
| NPS | LBS | KG |
|---|---|---|
| 1/2 | 0.35 | 0.16 |
| 3/4 | 0.45 | 0.2 |
| 1 | 0.75 | 0.34 |
| 1.1/4 | 1.3 | 0.59 |
| 1.1/2 | 2 | 0.91 |
| 2 | 3.5 | 1.59 |
| 2.1/2 | 6 | 2.72 |
| 3 | 7 | 3.18 |
| 3.1/2 | 9 | 4.08 |
| 4 | 12 | 5.44 |
| 5 | 21 | 9.53 |
| 6 | 34 | 15.42 |
| 8 | 55 | 24.95 |
| 10 | 85 | 38.56 |
| 12 | 120 | 54.43 |
| 14 | 165 | 74.84 |
| 16 | 195 | 88.45 |
| 18 | 249 | 112.94 |
| 20 | 342 | 155.13 |
| 22 | 414 | 187.79 |
| 24 | 528 | 239.5 |
| 26 | 770 | 349.27 |
| 30 | 1060 | 480.81 |
| 36 | 1490 | 675.85 |
