Incoloy flanges are nickel-iron-chromium alloy piping components designed for high-temperature, high-pressure, and corrosive industrial environments. As a reliable Incoloy Flange Stockist in India and Incoloy Flange Supplier in India, we supply a range of Incoloy flanges in different grades, dimensions, pressure classes, and flange configurations.
Incoloy alloys are commonly selected for applications where conventional carbon steel, stainless steel, or even a Titanium Flange may not provide the required combination of oxidation resistance, carburization resistance, high-temperature strength, and corrosion performance.
Get Factory Rates →Incoloy 800 is a nickel-iron-chromium alloy developed for high-temperature applications. Its controlled composition provides good structural stability and resistance to oxidation and carburization at elevated temperatures.
Key characteristics include:
Incoloy 800 flanges are commonly used in furnace equipment, petrochemical plants, heat-treatment systems, and high-temperature process piping.
Incoloy 800H is a higher-carbon version of the 800 series designed for improved creep and rupture strength at elevated temperatures. It is particularly suitable for applications involving sustained exposure to high temperatures.
Key characteristics include:
Incoloy 800H flanges are widely used in steam reformers, petrochemical processing, industrial furnaces, and high-temperature piping systems.
Incoloy 800HT is a further controlled variation of the Incoloy 800 series. It contains controlled aluminium and titanium levels to improve high-temperature strength and creep resistance.
Key characteristics include:
Incoloy 800HT flanges are used in furnace components, petrochemical plants, heat-processing equipment, and other high-temperature industrial systems.
Incoloy 825 is a nickel-iron-chromium alloy containing molybdenum and copper for enhanced corrosion resistance. Unlike the 800 series, which is primarily selected for high-temperature strength and oxidation resistance, Incoloy 825 is particularly suitable for aggressive aqueous and chemical environments.
Key characteristics include:
Incoloy 825 flanges are commonly used in chemical processing, pollution-control systems, acid handling equipment, offshore applications, and oil and gas processing.

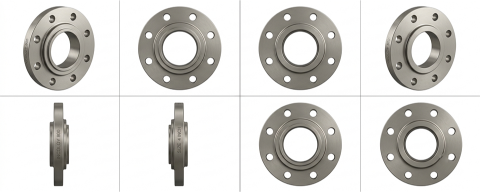

As an experienced Incoloy Flange Supplier in India, we supply different flange configurations according to pressure, temperature, piping layout, and process requirements.
Weld neck flanges feature a tapered hub that provides a gradual transition between the flange and pipe. They are generally preferred for high-pressure, elevated-temperature, and cyclic service.
Slip-on flanges are installed over the pipe and welded into position. They are suitable for applications where easier alignment and installation are required.
Blind flanges are used to close pipeline ends, pressure vessel openings, and process connections. They provide a removable closure for maintenance, inspection, and pressure testing.
As a professional Incoloy Flange Stockist in India, we supply Incoloy flanges according to international dimensional standards and project requirements.
Common standards include:
Common pressure classes include:
Incoloy flanges can also be manufactured according to customer drawings and project-specific dimensional requirements.
The mechanical properties of an Incoloy flange depend on the selected grade, heat treatment, manufacturing process, and operating temperature.
Important characteristics include:
Incoloy 800H and 800HT are generally selected where long-term strength at elevated temperatures is critical, while Incoloy 825 is chosen primarily for its corrosion resistance in aggressive chemical environments.
Different Incoloy grades are designed for different service environments.
The 800 series provides resistance to:
Incoloy 825 offers resistance to:
The correct Incoloy grade should always be selected according to chemical composition, operating temperature, pressure, concentration, and potential process contaminants.
Incoloy flanges are generally produced through controlled forging, machining, and heat-treatment processes.
The manufacturing process may include:
Nickel-based alloys can work-harden during machining, requiring appropriate cutting tools, machining speeds, and process control.
Incoloy alloys generally have good weldability when suitable welding procedures and compatible filler materials are used.
Important fabrication considerations include:
The welding procedure should be selected according to the specific Incoloy grade and intended service environment.
Incoloy flanges are used in industries requiring reliable performance under corrosive or elevated-temperature conditions.
Major applications include:
Incoloy 800-series grades are particularly suitable for high-temperature equipment, while Incoloy 825 is widely used for corrosion-resistant chemical and process applications.
A Titanium Flange is often selected for its excellent corrosion resistance and low density, while an Incoloy flange is commonly preferred for high-temperature systems requiring oxidation resistance, creep strength, or carburization resistance.
| Property | Incoloy Flange | Titanium Flange |
|---|---|---|
| Primary Advantage | High-temperature and corrosion resistance | Excellent corrosion resistance and low weight |
| Base Material | Nickel-iron-chromium alloy | Titanium or titanium alloy |
| High-Temperature Strength | Excellent for suitable grades | Depends on titanium grade and service temperature |
| Seawater Resistance | Grade-dependent | Excellent in many seawater applications |
| Weight | Higher | Significantly lower |
| Typical Applications | Furnaces, petrochemical, chemical processing | Marine, chemical, desalination |
Incoloy flanges can be supplied with inspection and testing according to project requirements.
Available testing may include:
Documentation may include Material Test Certificates, inspection reports, PMI reports, and other customer-specific quality documents.
View Certificate →As a trusted Incoloy Flange Stockist in India and Incoloy Flange Supplier in India, we supply Incoloy flanges for high-temperature and corrosion-resistant piping applications.
Our supply capabilities include:
As a reliable Incoloy Flange Stockist in India and Incoloy Flange Supplier in India, we supply Incoloy flanges for chemical processing, petrochemical plants, power generation, furnace systems, heat treatment, and high-temperature industrial applications.
Our range includes Incoloy 800, Incoloy 800H, Incoloy 800HT, and Incoloy 825 flanges in different types, sizes, pressure ratings, and dimensional standards. Each flange can be supplied with the required material certification, testing documentation, and traceability to support project quality requirements.
For an accurate quotation, provide the required Incoloy grade, flange type, size, pressure class, standard, quantity, testing requirements, and documentation requirements to ensure the correct product is supplied for your application.
