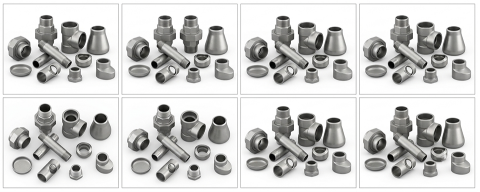

Nickel alloy steel forged fittings are engineered for critical piping systems operating in highly corrosive, high-temperature, high-pressure, and chemically aggressive environments. As a reliable Nickel Alloy Steel Forged Fitting Stockist in India and Nickel Alloy Steel Forged Fitting Supplier in India, Metal-Link Steel & Alloys supplies forged fittings in a wide range of nickel-based alloy grades, sizes, pressure classes, and end connections.
A Nickel Alloy Steel Forged Fitting is manufactured from high-performance nickel-based material and formed through controlled forging and machining processes. Depending on the alloy grade, these fittings can provide excellent resistance to reducing acids, oxidizing media, seawater, chloride environments, pitting, crevice corrosion, stress-corrosion cracking, and elevated-temperature oxidation.
With an established presence since 1985 and ISO 9001:2015, ISO 14001:2015 and ISO 45001:2018 certifications, Metal-Link supports nickel alloy forged fitting requirements with material traceability, inspection documentation and project-based supply.
Get Factory Rates →| Specification | Details |
|---|---|
| Product | Nickel Alloy Steel Forged Fittings |
| Material Grades | Nickel 200, Nickel 201, Inconel 600, Inconel 625, Inconel 718, Incoloy 800, Incoloy 825, Hastelloy C276 |
| Pressure Classes | Class 3000, 6000, 9000 |
| End Connections | Socket Weld, Threaded |
| Standards | ASME B16.11, MSS SP-79, MSS SP-83, MSS SP-95, MSS SP-97 |
| Material Specification | ASTM B564 / ASME SB564, ASTM B160 / ASME SB160 |
| Product Form | Forged & Machined |
| Types Available | Elbows, Tees, Crosses, Couplings, Unions, Caps, Plugs, Bushings, Reducers, Swage Nipples |
| Application | Corrosive, High-Temperature & High-Pressure Industrial Piping Systems |
As an experienced Nickel Alloy Steel Forged Fitting Supplier in India, Metal-Link supplies forged components for directional changes, branch connections, pipe extensions, isolation points, and system termination. Our product range includes:
Socket weld fittings are designed primarily for small-bore piping systems. The pipe is inserted into the fitting socket, and the external joint is welded to create a permanent connection.
Socket weld Nickel Alloy Steel Forged Fittings are commonly used in chemical processing, offshore facilities, high-pressure process lines, and elevated-temperature systems.
Threaded forged fittings use machined internal threads to connect with externally threaded pipe or components. They are useful where welding is not practical or where dismantling is required for maintenance.
Threaded connections should be carefully evaluated for vibration, cyclic loading, leakage-sensitive fluids, and severe service conditions.
| Grade | Standard Reference | Typical Application |
|---|---|---|
| Nickel 200 | ASTM B160 / B564 | Caustic handling, chemical & food processing |
| Nickel 201 | ASTM B160 / B564 | Elevated-temperature chemical & thermal applications |
| Inconel 600 | ASTM B564 | High-temperature & furnace process piping |
| Inconel 625 | ASTM B564 | Offshore, marine & chemical processing |
| Inconel 718 | ASTM B564 | High-strength elevated-temperature applications |
| Incoloy 800 | ASTM B564 | Industrial furnaces, heat exchangers & thermal processing |
| Incoloy 825 | ASTM B564 | Acid processing, offshore & oil and gas applications |
| Hastelloy C276 | ASTM B564 | Severe corrosive & aggressive chemical processing |
Nickel 200 is commercially pure nickel known for its excellent resistance to many reducing environments and caustic alkalis. Its high nickel content also provides good thermal and electrical conductivity.
Nickel 200 forged fittings are commonly used in chemical processing, caustic handling, food processing, and specialized process equipment.
Nickel 201 is a low-carbon version of Nickel 200. The reduced carbon content improves its stability during prolonged exposure to elevated temperatures by reducing susceptibility to graphitization.
Nickel 201 forged fittings are suitable for thermal processing and chemical applications involving elevated operating temperatures.
Inconel 600 is a nickel-chromium alloy designed for high-temperature and corrosion-resistant applications. The combination of nickel and chromium provides resistance to a wide range of process environments.
Inconel 600 forged fittings are used in furnace systems, heat-treatment equipment, chemical processing, and high-temperature process piping.
Inconel 625 is a nickel-chromium-molybdenum alloy strengthened mainly through solid-solution hardening. Its molybdenum and niobium additions provide a combination of high strength and excellent corrosion resistance.
Inconel 625 Nickel Alloy Steel Forged Fittings are widely used in offshore oil and gas systems, marine engineering, chemical processing, and pollution-control equipment.
Inconel 718 is a precipitation-hardenable nickel-chromium alloy capable of developing very high strength through controlled heat treatment. Its primary advantage is exceptional mechanical performance at elevated temperatures.
Inconel 718 is generally selected for specialized high-strength and high-temperature engineering applications.
Incoloy 800 is a nickel-iron-chromium alloy developed for structural stability at elevated temperatures. It offers good resistance to oxidation and carburization.
Incoloy 800 forged fittings are commonly used in industrial furnaces, heat exchangers, petrochemical plants, and thermal processing equipment.
Incoloy 825 is a nickel-iron-chromium alloy containing molybdenum and copper. This composition provides strong resistance to a wide range of aqueous corrosive environments.
Incoloy 825 Nickel Alloy Steel Forged Fittings are widely used in acid processing, chemical plants, offshore systems, and oil and gas applications.
Hastelloy C276 is a nickel-molybdenum-chromium alloy designed for severe corrosive environments. It is particularly valued for its broad resistance to aggressive chemicals and localized corrosion.
Hastelloy C276 forged fittings are used in chemical processing, pollution-control systems, flue gas treatment, and severe corrosive service.
Nickel alloy forged fittings are commonly available in the following pressure classes. The correct class should be selected according to the piping design, pipe schedule, material properties, design temperature, design pressure, and applicable code requirements.
Pressure capability should always be verified using the appropriate temperature-pressure ratings rather than relying only on the pressure class designation.
As a professional Nickel Alloy Steel Forged Fitting Stockist in India, Metal-Link supplies fittings according to applicable international standards and project specifications.
| Standard | Scope |
|---|---|
| ASME B16.11 | Forged fittings – socket-weld and threaded end connections |
| ASTM B564 / ASME SB564 | Nickel alloy forged material specification |
| ASTM B160 / ASME SB160 | Nickel 200 / 201 rod and bar material specification |
| ASTM B366 | Related nickel alloy butt-weld fittings |
| MSS SP-79 | Socket-welding reducer inserts |
| MSS SP-83 | Class 3000 and 6000 pipe unions |
| MSS SP-95 | Swaged nipples and bull plugs |
| MSS SP-97 | Integrally reinforced branch outlet fittings |
| EN / DIN / BS | Alternative dimensional and material standards as required |
The performance of a Nickel Alloy Steel Forged Fitting is determined by its nickel base and carefully controlled alloying additions.
| Alloying Element | Primary Contribution |
|---|---|
| Nickel | Improves corrosion resistance, toughness, and thermal stability |
| Chromium | Improves oxidation and resistance to oxidizing environments |
| Molybdenum | Improves resistance to reducing acids, pitting, and crevice corrosion |
| Iron | Provides structural balance in nickel-iron-chromium alloys |
| Copper | Improves resistance to selected acid environments |
| Niobium | Contributes to strengthening and high-temperature performance |
| Titanium | Provides stabilization or strengthening in selected alloys |
| Aluminium | Supports oxidation resistance and precipitation strengthening in specific alloys |
The exact composition varies by grade and should be verified against the relevant ASTM or ASME specification and Material Test Certificate.
Nickel alloys require carefully controlled forging and machining because many nickel-based materials exhibit significant work hardening. A typical manufacturing process includes:
Proper heat treatment and surface control are particularly important because surface contamination or improper processing can affect corrosion performance.
Nickel alloy forged fittings are selected for service conditions where conventional carbon steel or standard stainless steel may not provide sufficient corrosion resistance or elevated-temperature stability. Depending on the selected grade, important properties include:
The specific grade should be selected according to the combination of pressure, temperature, mechanical loading, and chemical environment.
Different nickel alloys are designed to address different corrosion mechanisms. Nickel 200 and Nickel 201 are particularly suitable for selected reducing and caustic environments. Inconel 625 offers strong resistance to seawater and localized corrosion, while Incoloy 825 performs well in various acid environments. Hastelloy C276 is selected for some of the most aggressive chemical processing conditions.
Depending on the grade, Nickel Alloy Steel Forged Fittings can resist:
Material selection should always consider chemical concentration, operating temperature, contaminants, flow conditions, and the expected corrosion mechanism.
Nickel alloy fittings are commonly welded using qualified procedures and compatible filler materials. Important fabrication considerations include:
The welding procedure should be developed specifically for the nickel alloy grade and service requirements.
Nickel alloy forged fittings are widely used in industries where corrosion resistance and high-temperature reliability are critical.
As a dependable Nickel Alloy Steel Forged Fitting Supplier in India, Metal-Link Steel & Alloys can supply products with testing and inspection according to project requirements. Available testing may include:
With an established presence since 1985 and ISO 9001:2015, ISO 14001:2015 and ISO 45001:2018 certifications, Metal-Link supports consistent product quality. Documentation may include Material Test Certificates, PMI reports, NDT reports, and third-party inspection certificates.
View Certificate →Metal-Link Steel & Alloys supplies Nickel Alloy Steel Forged Fittings to EPC contractors, engineering companies, process plants, offshore operators, fabricators, distributors and industrial buyers across major Indian markets. As a Nickel Alloy Steel Forged Fitting Supplier in India, Metal-Link supports standard and project-specific requirements based on grade, size, pressure class and quantity.
Looking for a Nickel Alloy Steel Forged Fitting Stockist in India for your chemical processing, offshore, or high-temperature piping requirements? Contact Metal-Link Steel & Alloys with your required fitting type, material grade, size, pressure class, end connection, thread specification where applicable, quantity, testing requirements, inspection requirements and documentation requirements for availability and project-specific pricing.
