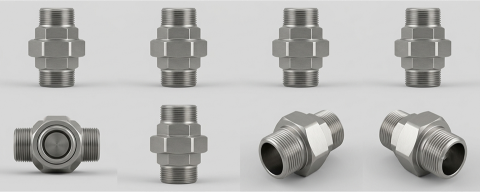

Stainless steel forged fittings are high-strength pipe connection components designed for pressure piping systems where reliability, dimensional accuracy, and corrosion resistance are essential. As a trusted Stainless Steel Forged Fitting Stockist in India and Stainless Steel Forged Fitting Supplier in India, Metal-Link Steel & Alloys supplies a comprehensive range of forged fittings in different grades, pressure classes, sizes, and end connections.
A Stainless Steel Forged Fitting is produced from forged material, giving the component a refined grain structure and reliable mechanical performance. These fittings are commonly used in small-bore, high-pressure piping systems found in chemical plants, refineries, oil and gas facilities, power plants, pharmaceutical units, and process industries.
With an established presence since 1985 and ISO 9001:2015, ISO 14001:2015 and ISO 45001:2018 certifications, Metal-Link supports forged fitting requirements with material traceability, inspection documentation and project-based supply.
Get Factory Rates →| Specification | Details |
|---|---|
| Product | Stainless Steel Forged Fittings |
| Material Grades | 304 / 304L, 316 / 316L, 321, 347 |
| Pressure Classes | Class 3000, 6000, 9000 |
| End Connections | Socket Weld, Threaded |
| Standards | ASME B16.11, MSS SP-79, MSS SP-83, MSS SP-95, MSS SP-97 |
| Material Specification | ASTM A182 / ASME SA182 |
| Product Form | Forged & Machined |
| Types Available | Elbows, Tees, Crosses, Couplings, Unions, Caps, Plugs, Bushings, Reducers, Swage Nipples |
| Application | High-Pressure Industrial & Process Piping Systems |
As an experienced Stainless Steel Forged Fitting Supplier in India, Metal-Link supplies fittings for different piping layouts and connection requirements. Our product range includes:
Socket weld fittings are designed to connect pipes by inserting the pipe into a recessed socket and welding around the joint. They are commonly used for small-diameter piping systems where a strong and permanent connection is required.
Socket weld Stainless Steel Forged Fittings are widely used in steam lines, process piping, hydraulic systems, and high-pressure industrial installations.
Threaded forged fittings use internal threads to connect with externally threaded pipes or components. They allow assembly and disassembly without welding.
Threaded fittings are commonly used in low- to moderate-pressure systems, instrumentation lines, utility piping, and applications requiring dismantling.
| Material Grade | Standard Reference | Typical Application Advantage |
|---|---|---|
| 304 / 304L | ASTM A182 F304 / F304L | General corrosion-resistant & welded piping systems |
| 316 / 316L | ASTM A182 F316 / F316L | Chloride-containing & corrosive welded piping systems |
| 321 | ASTM A182 F321 | Elevated-temperature applications |
| 347 | ASTM A182 F347 | High-temperature welded systems |

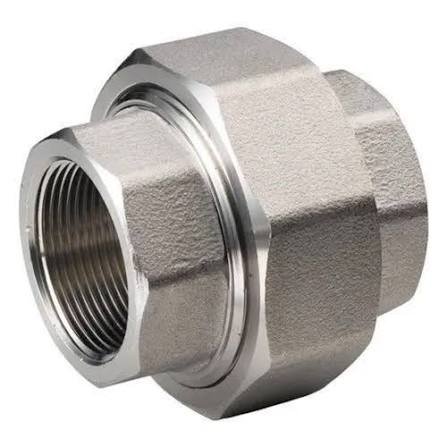

Stainless Steel 304 is an austenitic chromium-nickel alloy widely used for general industrial applications. It offers a good balance of corrosion resistance, strength, weldability, and formability.
Stainless Steel 304 forged fittings are commonly used in food processing, water systems, chemical handling, and general process piping.
Stainless Steel 304L is the low-carbon version of Grade 304. Its reduced carbon content helps minimize the risk of sensitization and intergranular corrosion in welded systems.
304L forged fittings are widely used where extensive welding is involved and post-weld heat treatment is not practical.

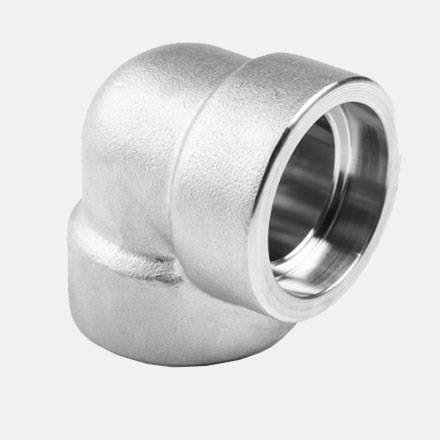

Stainless Steel 316 contains molybdenum, which improves resistance to pitting and crevice corrosion compared with Grade 304, particularly in chloride-containing environments.
Grade 316 Stainless Steel Forged Fittings are widely used in chemical processing, marine systems, pharmaceutical plants, and process industries.
Stainless Steel 316L combines the corrosion resistance of Grade 316 with a lower carbon content for improved performance in welded structures.
316L forged fittings are commonly used in pharmaceutical processing, chemical plants, offshore systems, and high-purity piping applications.
Stainless Steel 321 is a titanium-stabilized austenitic stainless steel developed for applications involving elevated temperatures.
Grade 321 forged fittings are used in high-temperature process piping, heat exchangers, exhaust systems, and thermal processing equipment.
Stainless Steel 347 is stabilized with niobium to improve resistance to sensitization during elevated-temperature service.
Grade 347 forged fittings are commonly used in refineries, petrochemical plants, boilers, and high-temperature process systems.
Stainless steel forged fittings are commonly supplied according to the following pressure classes. The required class should be selected based on pipe dimensions, wall thickness, material grade, design pressure, design temperature, and the applicable piping code.
A higher class does not automatically mean that the fitting is suitable for every operating condition. The complete piping design and temperature-pressure relationship must be considered.
As a professional Stainless Steel Forged Fitting Stockist in India, Metal-Link supplies fittings in accordance with applicable international standards.
| Standard | Scope |
|---|---|
| ASME B16.11 | Forged fittings – socket-weld and threaded end connections |
| MSS SP-79 | Socket-welding reducer inserts |
| MSS SP-83 | Class 3000 and 6000 pipe unions |
| MSS SP-95 | Swaged nipples and bull plugs |
| MSS SP-97 | Integrally reinforced branch outlet fittings |
| ASTM A182 / ASME SA182 | Forged stainless steel material specification |
| BS / DIN / EN | Alternative dimensional and material standards as required |
The forging process improves the structural integrity of the fitting by mechanically working the material into the required shape. A typical manufacturing process may include:
Forged construction is particularly suitable for fittings used in compact, high-pressure piping systems.
The mechanical properties of a Stainless Steel Forged Fitting depend on the selected grade, heat treatment, and applicable material specification. Important performance characteristics include:
Forged stainless steel fittings are often preferred where piping systems experience pressure fluctuations, vibration, or demanding operating conditions.
The corrosion resistance of Stainless Steel Forged Fittings varies according to the alloy grade. Grade 304 is suitable for general industrial and atmospheric environments, while Grade 316 provides improved resistance to chloride-containing and chemical environments because of its molybdenum content.
Stabilized grades such as 321 and 347 are selected for specific elevated-temperature applications where resistance to sensitization and thermal stability are important. The correct material should always be selected according to the actual process conditions rather than relying only on the general grade description.
Stainless steel forged fittings are used across industries requiring reliable small-bore pipe connections in demanding pressure and temperature environments.
As a dependable Stainless Steel Forged Fitting Supplier in India, Metal-Link Steel & Alloys can supply fittings with inspection and testing according to project and customer requirements. Available inspection may include:
With an established presence since 1985 and ISO 9001:2015, ISO 14001:2015 and ISO 45001:2018 certifications, Metal-Link supports consistent product quality. Material Test Certificates and third-party inspection documentation can be provided where required.
View Certificate →Metal-Link Steel & Alloys supplies Stainless Steel Forged Fittings to EPC contractors, engineering companies, process plants, fabricators, distributors and industrial buyers across major Indian markets. As a Stainless Steel Forged Fitting Supplier in India, Metal-Link supports standard and project-specific requirements based on grade, size, pressure class and quantity.
Looking for a Stainless Steel Forged Fitting Stockist in India for your piping or engineering requirements? Contact Metal-Link Steel & Alloys with your required fitting type, material grade, size, pressure class, end connection, thread standard where applicable, quantity, testing requirements and documentation requirements for availability and project-specific pricing.
